Description

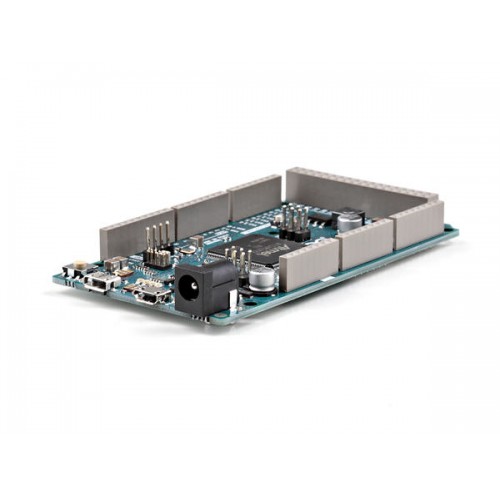

Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. The Due follows the 1.0 pinout: TWI: SDA and SCL pins that are near to the AREF pin. The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V. An unconnected pin, reserved for future use. ARM Core benefits The Due has a 32-bit ARM core that can outperform typical 8-bit microcontroller boards. The most significant differences are: A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock. CPU Clock at 84Mhz. 96 KBytes of SRAM. 512 KBytes of Flash memory for code. a DMA controller, that can relieve the CPU from doing memory intensive tasks. Product Information Microcontroller: AT91SAM3X8E Operating Voltage: 3.3V Recommended Input Voltage: 7-12V Min-Max Input Voltage: 6-20V Digital I/O Pins: 54 (of which 12 provide PWM output) Analog Input Pins: 12 Analog Outputs Pins: 2 Total DC Output Current on all I/O lines: 130 mA DC Current for 3.3V Pin: 800 mA DC Current for 5V Pin: 800 mA Flash Memory: 512 KB all available for the user applications SRAM: 96 KB (two banks: 64KB and 32KB) Clock Speed: 84 MHz Resettable polyfuse that protects PC USB ports from shorts and overcurrent Dimensions: Length 4", Width 2.1" Package includes: 1 x Arduino Due
